Lumber Rolls - Recessed

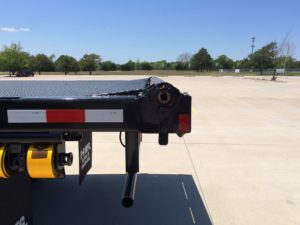

RB designs heavy duty platform rollers for recessed mounting into the body for approx. 2-2 1/2” above floor protrusion.

The split rollers allow unloading of half width loads. RB Rollers come equipped with a spring retained lock on both halves. They are designed to be mounted on top of the long sills giving an installed height of 6.375″. Standard lengths at 96” and 102” with custom lengths available. Diameter of the roll is 4 1/2”.

RM-SPL-R

Heavy Duty Split Rear Lumber Roll with gusseted 1/4" x 8" vertical plate on back side.

RM-SPL-C

Heavy Duty Split Center Lumber Roll

RM-SPL-R45

Heavy Duty Split Rear Lumber Roll with gusseted 1/4" x 12", 45 Degree Slant Rear Apron

Click here for installation guide. RM-SPL-R-102 ROLLER TO FLOOR INSTALLATION 102 – DUAL ROLLER
